FDA Cleared CO2 Fractional Laser Machine,K106

FDA Cleared CO2 Fractional Laser Machine,K106 - Image 2

FDA Cleared CO2 Fractional Laser Machine,K106

Professional CO2 Fractional Laser Machine designed for aesthetic dermatology and gynecological applications.

3-in-1 System – Fractional, Surgical & Vaginal modes
15.6″ HD Touchscreen – Intuitive and easy-to-use interface
U.S.-Imported Laser Emitter – Stable and evenly distributed energy
Versatile Applications – Skin rejuvenation, wrinkle and scar improvement
Vaginal Rejuvenation Mode – Expands treatment possibilities

High-ROI Fractional CO₂ Laser Machine

A professional fractional CO₂ laser system designed for beauty salons, dermatology clinics, and medical aesthetic centers, providing advanced skin resurfacing solutions with efficient operation and excellent treatment versatility.

Professional Fractional CO2 Laser System

5-in-1 Aesthetic Applications
Skin Resurfacing · Acne Scar Removal · Wrinkle Reduction · Pigmentation Treatment · Intimate Care.

Precision Fractional CO₂ Technology
Stimulates collagen regeneration and improves skin texture with controlled micro-treatment.

3-in-1 Treatment Modes
Fractional Laser · Surgical Cutting · Gynecological Treatment.

Medical Grade Certifications
FDA 510(k) Cleared (K252519) · CE MDR · MDSAP · ISO13485

Fractional CO₂ Laser Working Principle

This device emits 10600nm infrared ablative laser. It splits the laser beam into numerous tiny micro-beams in a grid pattern.
When the laser hits the skin, micro thermal zones are created where skin tissue vaporizes. The untreated skin between these micro zones remains intact.
The micro-injuries trigger natural regeneration of collagen and elastin, resurfacing skin, removing scars, pigment lesions and wrinkles. The preserved healthy tissue speeds up recovery time compared with full-field CO₂ laser treatment.

Professional Diode Laser System Designed for Efficient Clinic Operations

High Stability Laser Output
Premium metal RF tube ensures stable laser energy and consistent treatment results.

Longer Service Life & Reliability
Better durability and heat resistance than conventional glass tubes, with an extended service life of 7–10 years.

Precise Energy Control
Quick response & precise power control for uniform, safe fractional CO₂ laser treatments.

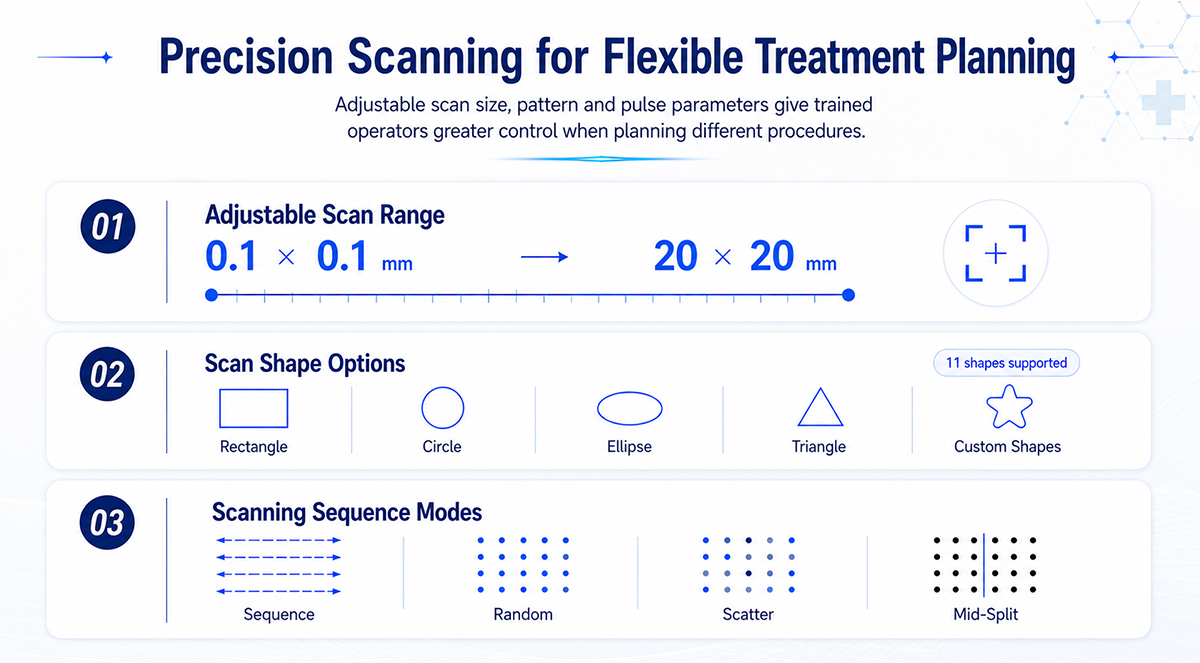

Scan Shapes & Clinical Application

·Circle
For periorbital area, local scars and intimate zones. Soft edge to fit curved skin.
·Square
For forehead and cheeks. High efficiency for large-area skin resurfacing, acne scars and stretch marks.
·Pentagon
For jawline and temples. Fit angular facial areas with seamless coverage.
·Triangle
For nasolabial sides, eye corners. Precisely treat narrow triangular zones.
·Ellipse
For neck, perioral lines and long linear scars. Ideal for elongated treatment regions.
·Diamond
For cheekbone, jaw edge and slender scars. Suitable for irregular long lesions.
All scan patterns are adjustable directly on Android control system, no need to change handpiece.

CO2 Laser has 6 kinds of treatment modes.

Fractional Pulse
Precision micro-ablation for skin resurfacing
Ultra Pulse
Ultra-short pulse for targeted precision
CW
Continuous wave for deep thermal effect
Pulse
Standard pulse for versatile treatment
Gynecological
Specialized mode for intimate wellness
Mix Pulse
Combined pulse technology for enhanced results

K106 is suitable for:Medical spas,Beauty salons,Dermatology clinics,Aesthetic clinics,Laser hair removal centers,Professional distributors.

Hair Removal Treatment Areas

Face · Underarms · Arms · Legs · Back · Chest · Bikini Area

Why Choose KEYLASER for Diode Laser Equipment?

Core Advantages
19+ Years Manufacturing Experience as a professional Diode Laser Hair Removal Equipment Supplier
Factory Direct Supply
OEM / ODM Customization Available
Global Distributor Support
7×24-Hour Technical Support
Full Certifications: FDA 510(k), CE MDR, MDSAP, ISO 13485

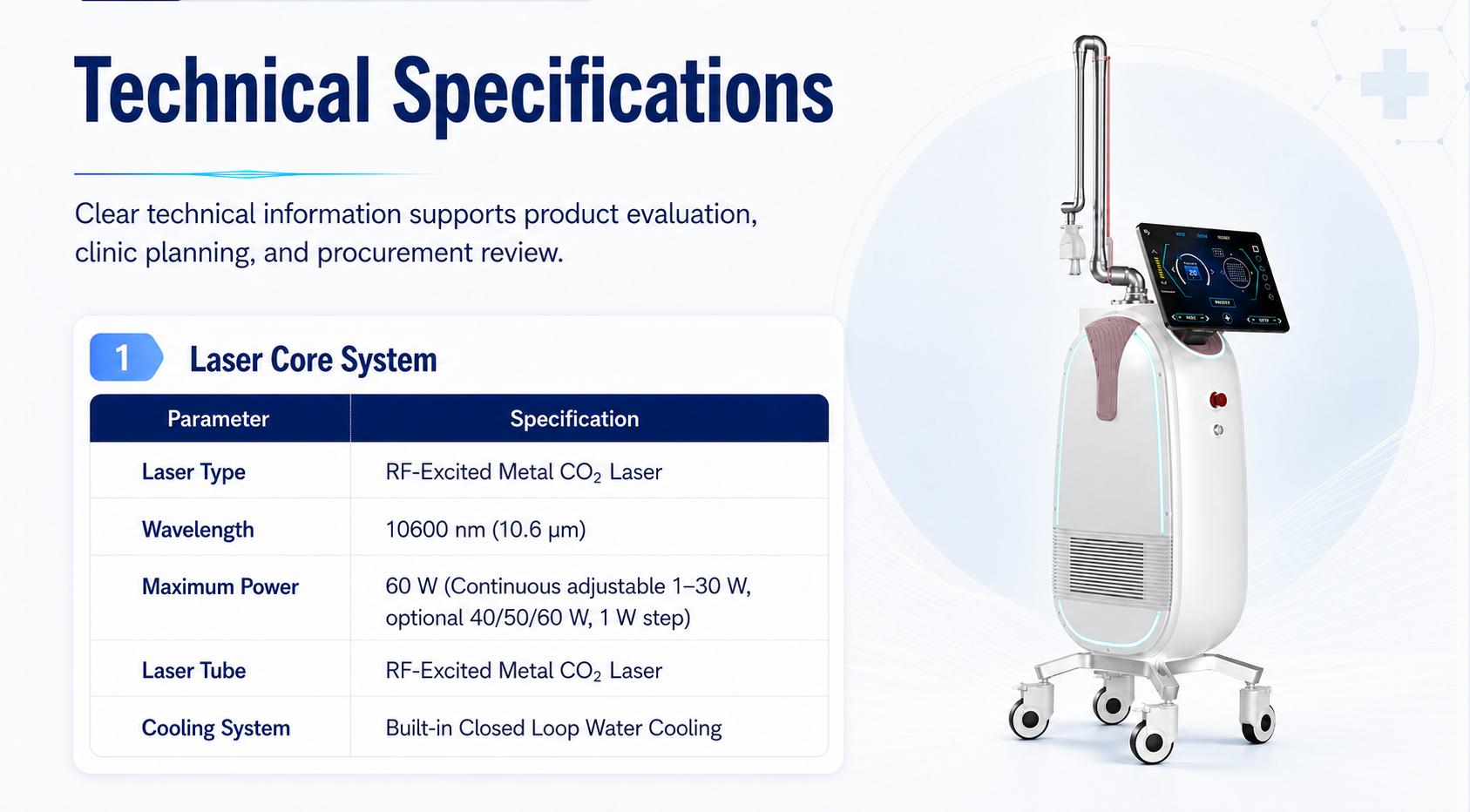

Fractional Co2 Laser machine - Product Specifications
Wavelength	10600 nm
Power	40W / 60W
Indication Beam	Diode Laser (532nm, 5mW)
Micro Pulse Energy	5mJ – 100mJ
Transmission System	7-Articulation Joint
Scanning Mode	Scanning Area: Min 0.1 × 0.1mm – Max 20 × 20mm
Scanning Graphic	Rectangular, Ellipse, Round, Triangle, Hexagon
Scan Depth	2 mm
Estimated Power	24mJ – 1000J
Continuous	1 – 40/60W, Step Adjustable Per 1W
Pulse Duration	90 – 1000μs
Laser Emitter	RF Tube

Q:What is a Fractional CO2 Laser Machine used for?

A: Fractional CO2 Laser is mainly used for skin resurfacing, acne scar removal, wrinkle reduction, pigmentation treatment, and intimate care. It improves skin texture by stimulating collagen regeneration and skin renewal.

Q: How does Fractional CO2 Laser technology work?

A: The 10,600nm CO2 laser creates precise micro-thermal treatment zones in the skin. The controlled thermal effect activates the skin’s natural repair process, promoting new collagen production and tissue remodeling.

Q:What treatment modes does this CO2 laser system support?

A: The system supports multiple treatment modes, including Fractional Laser, Surgical Cutting, and Gynecological Treatment, providing flexible solutions for different clinical applications.

Q: Is Fractional CO2 Laser suitable for different skin concerns?

A: Yes. It can be customized for various skin conditions, including fine lines, wrinkles, acne scars, enlarged pores, uneven skin texture, and pigmentation issues.

Q:What are the advantages of a Metal RF Tube CO2 Laser?

A: The Metal RF Tube provides stable laser output, fast response, accurate energy control, and longer operational lifetime for consistent treatment performance.
